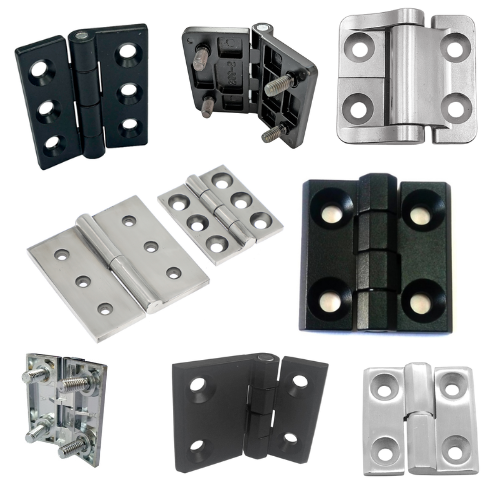

Industrial Butt Hinges: 270° Opening, Precision Fit and Genuine Materials

Industrial enclosures depend on dozens of small components, but the quality of those components can have a major impact on the finished product. Industrial butt hinges are a good example. A hinge that is poorly manufactured, incorrectly dimensioned or made from inferior material can cause alignment problems, unwanted gaps, restricted door movement and premature failure.

For demanding applications, an industrial hinge needs to provide more than basic movement. It needs to deliver precise fitting, reliable operation, sufficient opening angle and consistent material quality.

Our industrial butt hinges are manufactured with these requirements in mind, offering a 270° operating angle, close-fitting construction and genuine specified materials for industrial cabinets and enclosure applications.

What Are Industrial Butt Hinges?

An industrial butt hinge is a mechanical hinge designed to connect a door, cover or panel to a fixed frame while allowing controlled rotational movement.

Unlike standard domestic hinges, industrial butt hinges are commonly used in applications where durability, dimensional consistency and resistance to demanding operating conditions are important.

Typical applications include:

• Electrical cabinets
• Industrial control panels
• Metal enclosures
• Automation cabinets
• Telecom cabinets
• Machinery enclosures
• GRP and composite enclosures
• Control boxes
• Equipment cabinets
• Industrial access panels

The correct hinge can improve not only the operation of the door but also the overall appearance and serviceability of the enclosure.

270° Operating Angle for Maximum Access

One of the key advantages of our industrial butt hinges is their 270° operating angle.

A conventional hinge may restrict how far an enclosure door can open. In an industrial environment, this can make installation, inspection, maintenance and component replacement unnecessarily difficult.

A 270° hinge allows the door to move significantly beyond the standard 90° or 180° position, providing greater access to the enclosure interior.

This can be particularly useful where:

• Technicians need unrestricted access to electrical components
• Large enclosure doors need to be moved away from the working area
• Equipment is installed close to the enclosure
• Regular maintenance is required
• Internal components need to be replaced or inspected

More opening angle means better access — and better access can save valuable maintenance time.

Precision Fit With No Unnecessary Gaps

Industrial enclosure hardware needs to fit accurately.

Excessive gaps around a hinge can affect the appearance of the finished cabinet and may also indicate poor dimensional control or an unsuitable hinge design.

Our industrial butt hinges are designed for a close, precise fit, helping manufacturers achieve a clean and professional enclosure assembly.

This is particularly important for applications where multiple hinges are installed across a production run. Consistent dimensions help maintain repeatable assembly and reduce problems caused by variations between individual components.

A high-quality hinge should fit the enclosure rather than forcing the enclosure manufacturer to compensate for the hinge.

Genuine Materials Matter

Material quality is one of the most important considerations when selecting industrial hardware.

A hinge may look similar to another hinge on the outside while performing very differently in service.

Material selection influences:

• Mechanical strength
• Corrosion resistance
• Durability
• Surface appearance
• Environmental performance
• Long-term reliability

For industrial applications, the specified material should therefore be treated as an important part of the product specification rather than simply a marketing description.

Where stainless steel is required, the appropriate stainless-steel grade should be selected according to the application and environment. For example, AISI 304 stainless steel is widely used for general industrial applications, while AISI 316 stainless steel can be preferable in more demanding environments where increased corrosion resistance is required.

Always verify the exact material specification of the hinge before selecting it for a critical application.

Why Hinge Quality Matters in Industrial Enclosures

It is easy to underestimate the importance of hinges because they are relatively small components.

However, the hinge is responsible for supporting the enclosure door and controlling its movement every time the door is opened and closed.

A poor-quality hinge can contribute to:

• Door misalignment
• Difficult opening and closing
• Excessive movement
• Unwanted gaps
• Premature wear
• Corrosion
• Damage to surrounding hardware
• Increased maintenance requirements

For manufacturers producing cabinets in volume, even a small inconsistency can become a significant production problem when repeated across hundreds or thousands of units.

That is why dimensional consistency and material quality are critical when sourcing industrial enclosure hinges.

Industrial Butt Hinges for Electrical Cabinets

Electrical and control cabinets often require reliable door hardware that can withstand repeated access during installation, inspection and maintenance.

Industrial butt hinges can be used on a wide range of enclosure doors and access panels, depending on the required load capacity, dimensions, mounting method and environmental conditions.

When selecting a hinge for an electrical cabinet, consider:

1. Door weight
   The hinge must be suitable for the weight and dimensions of the door.
2. Required opening angle
   A 270° hinge can provide considerably greater access than a conventional hinge.
3. Material
   Select the appropriate material for the operating environment.
4. Corrosion resistance
   Particularly important for outdoor, humid, industrial or chemically exposed environments.
5. Mounting arrangement
   Check the fixing method, hole positions and available installation space.
6. Operating frequency
   Doors that are opened frequently require hardware designed for repeated operation.
7. Clearance and enclosure design
   The hinge must work with the door, gasket, frame and other enclosure hardware without interference.

Industrial Hinges for Demanding Environments

Industrial enclosures can operate in very different environments, from clean indoor electrical rooms to outdoor installations exposed to moisture, temperature changes and contaminants.

The hinge material and finish should therefore be selected according to the actual application.

For example, stainless steel industrial hinges can be suitable where corrosion resistance and long-term durability are important.

For demanding projects, we recommend confirming the complete technical specification rather than selecting a hinge based only on appearance or price.

270° Industrial Hinge vs Standard Hinge

The main difference is the available door movement.

A standard hinge may provide sufficient movement for simple cabinet applications. However, where unrestricted access is important, a 270° industrial hinge can provide a significant practical advantage.

The correct choice depends on the enclosure design, door weight, installation space and required operating angle.

Quality Industrial Hardware From Factory Yard

At FACTORY YARD, we focus on supplying industrial hardware for electrical cabinets, metal enclosures, GRP enclosures and other industrial applications.

Our product range includes:

• Industrial hinges
• Butt hinges
• Continuous and piano hinges
• Concealed hinges
• Cam locks
• Quarter-turn locks
• Compression locks
• Handles
• Latches
• Swinghandles
• Gaskets and seals
• Bubble Gaskets
• Door Stays and Accessories

Our approach is simple: help customers source the hardware they need without wasting time dealing with multiple suppliers.

For manufacturers, distributors and industrial buyers, we can also discuss OEM requirements, customised hardware and sourcing solutions.

Frequently Asked Questions

What is an industrial butt hinge?

An industrial butt hinge is a hinge designed for industrial doors, cabinets, enclosures and panels. It allows a door or panel to rotate around a fixed axis and is available in different materials, dimensions and configurations.

What does a 270° hinge mean?

A 270° hinge is designed to allow the connected door or panel to rotate through an operating range of up to 270°, subject to the specific installation and enclosure design.

Why use a 270° hinge on an electrical cabinet?

A 270° hinge can move the door further away from the enclosure opening, improving access to internal components and making installation and maintenance easier.

Are stainless steel butt hinges suitable for outdoor applications?

Stainless steel can provide excellent corrosion resistance, but suitability depends on the specific stainless-steel grade, environment, finish and installation conditions. The correct material should always be selected according to the application.

What should I consider when choosing an industrial hinge?

Consider the door weight, dimensions, required opening angle, material, corrosion resistance, fixing method, available clearance and expected operating frequency.

Can industrial butt hinges be customised?

Depending on the project and production requirements, industrial hinges can potentially be supplied with customised dimensions, materials, finishes, hole configurations or other design features. Contact us with your requirements so the available options can be assessed.

Choose Precision Over Compromise

An industrial hinge may be a small part of an enclosure, but it directly affects door movement, alignment, accessibility and long-term usability.

When your application requires a 270° operating angle, precise fitting and reliable material quality, choosing the right industrial butt hinge is an important part of building a better enclosure.

Need industrial butt hinges for your cabinets or enclosures?

Contact FACTORY YARD to discuss your required dimensions, material, operating angle and quantity.

Factory Yard — industrial hardware without the hassle of multiple suppliers.
