Client Requirement

A UK industrial enclosure manufacturer approached us with a clear concern:

“We need heavy duty T-hinges that stay shiny and never rust in service.”

Their existing hinges—made from plated mild steel—were showing early signs of surface corrosion and dulling, especially in humid outdoor environments. The client required a long-term, maintenance-free solution suitable for UK conditions.

Challenge

The application involved:

• Outdoor exposure

• High humidity and temperature variation

• Long service life expectation

• Premium visual appearance (no staining or dulling)

Standard zinc-plated or powder-coated hinges were not sufficient for this environment.

Our Technical Assessment

We evaluated the operating conditions and explained an important reality:

• Coated carbon steel can eventually fail when the coating is damaged.

• True corrosion resistance must come from the base material itself, not just surface treatment.

Why Stainless Steel?

Stainless steel forms a passive chromium oxide layer that protects against corrosion. The key decision was which grade to specify.

Recommended Solution

We recommended manufacturing the heavy duty T-hinges exclusively from:

• Stainless Steel 304 (EN 1.4301)

• Stainless Steel 316 (EN 1.4401 / 1.4404)

Material Selection Logic

Grade 304 — General Outdoor Use

• Excellent corrosion resistance in normal atmospheric conditions

• Cost-effective for indoor and mild outdoor environments

• Contains approx. 18% chromium and 8% nickel

Grade 316 — Harsh / Coastal / Industrial Use

• Contains ~2% molybdenum for superior chloride resistance

• Much better resistance to pitting and crevice corrosion

• Recommended for marine, chemical, and aggressive environments

? In simple terms: 304 resists rust well; 316 resists it exceptionally well.

Implementation

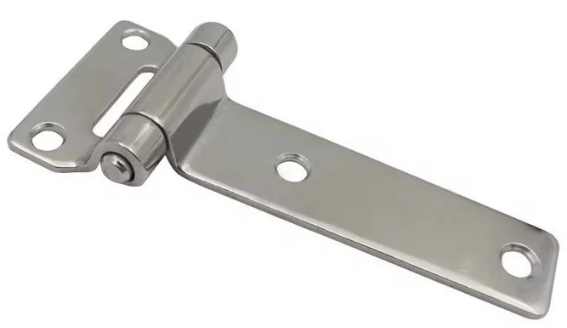

We supplied heavy duty T-hinges manufactured from certified stainless steel with:

• Material certificates (EN 10204 3.1 available)

• Precision finishing for long-term shine

• Passivated surface for maximum corrosion resistance

• Full UK market compliance

Results

After deployment, the client reported:

✅ No visible corrosion after extended outdoor exposure
✅ Maintained bright metallic appearance
✅ Reduced maintenance requirements
✅ Improved product reliability perception

The client has since standardized stainless steel hinges across new projects.

UK Compliance & Material References

For UK and European projects, these stainless grades correspond to:

• 304: EN 1.4301

• 316: EN 1.4401 / EN 1.4404

Authoritative technical guidance:

• British Stainless Steel Association technical resources:
  https://bssa.org.uk/technical-help/types-grades/austenitic-stainless-steels/

• UK engineering comparison of 304 vs 316:
  https://www.essentracomponents.com/en-gb/news/solutions/access-hardware/304-vs-316-stainless-steel

(These are widely accepted references for UK material compliance.)

Conclusion

When the requirement is “always shiny, no rust,” coatings are not enough.
The correct engineering decision is to use solid stainless steel hinges:

• Choose 304 for standard indoor/outdoor environments

• Choose 316 for coastal, chemical, or high-humidity exposure

For heavy duty applications where reputation and longevity matter, stainless steel is the only reliable long-term solution.
