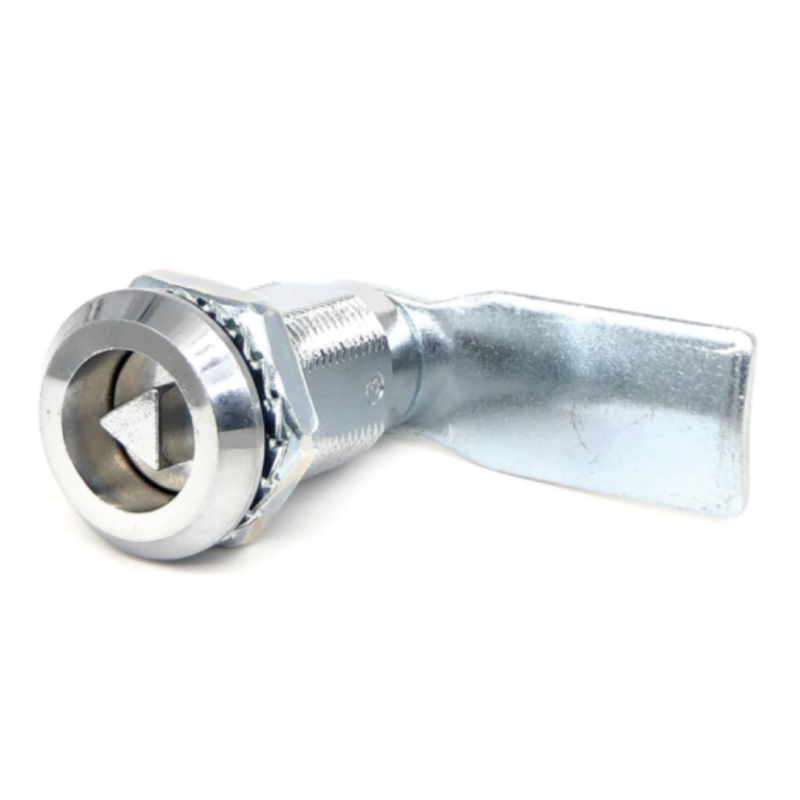

Quarter Turn Cam Lock with 8mm Triangular Insert GH=40mm

The Factory Yard Quarter Turn Cam Lock with an 8mm triangular insert is a secure and reliable locking solution for industrial enclosures, electrical cabinets and utility infrastructure. Designed with a GH (grip height/thread length) of 40mm, it is suitable for thicker door panels and insulated enclosure doors where standard cam locks may not provide sufficient engagement.

Manufactured from high-quality zinc die casting with a bright chrome plated finish, this lock combines durability, corrosion resistance and an attractive appearance. The straight cam provides dependable latching performance and can be supplied with alternative cam lengths and offsets to suit different enclosure designs.

The 8mm triangular insert is one of the most widely used utility locking standards, commonly found on electrical distribution cabinets, telecom enclosures, water treatment equipment, gas installations and public infrastructure.

---

Key Features

• 90° quarter-turn operation
• 8mm triangular insert
• GH (thread length) 40mm
• Straight cam included
• Zinc die cast body
• Chrome plated finish
• Smooth and reliable operation
• Corrosion-resistant surface
• Suitable for left or right-hand installation
• Easy installation
• Suitable for indoor and outdoor enclosures
• OEM production available

---

Product Benefits

The extended 40mm thread length allows installation into thicker cabinet doors, insulated panels and double-wall enclosures while maintaining secure locking performance.

Benefits include:

• Fast quarter-turn locking
• Increased installation flexibility
• Suitable for thick doors
• Durable die-cast construction
• Attractive chrome finish
• Long service life
• Low maintenance
• Compatible with many industrial cabinet designs

---

Typical Applications

This quarter turn cam lock is commonly installed on:

• Electrical distribution cabinets
• Switchgear enclosures
• Control panels
• Telecommunications cabinets
• Fibre optic cabinets
• GRP enclosures
• Metal cabinets
• Utility cabinets
• Water treatment equipment
• Gas service cabinets
• Street furniture
• Outdoor control boxes
• Railway signalling equipment
• Renewable energy systems
• EV charging infrastructure
• Generator enclosures
• Industrial machinery
• HVAC equipment

---

Technical Information

Body Material

• Zinc Die Cast

Surface Finish

• Bright Chrome Plated

Insert Type

• 8mm Triangle

Operation

• Quarter Turn (90°)

Thread Length (GH)

• 40 mm

Cam

• Straight Cam

Installation

• Panel mounted

---

Why Choose an 8mm Triangular Insert?

The 8mm triangular insert is a recognised industrial locking profile used to restrict access to authorised personnel while allowing quick operation with the correct service key.

Advantages include:

• Industry-recognised utility standard
• Improved security over slotted locks
• Simple operation
• Robust design
• Suitable for maintenance personnel
• Compatible with many utility service keys

---

Manufacturing Quality

Every Factory Yard quarter turn cam lock is manufactured through multiple precision production stages including:

• Zinc die casting
• Precision machining
• Chrome electroplating
• Insert assembly
• Cam fitting
• Functional testing
• Quality inspection
• Final packaging

Each production stage contributes to smooth operation, dimensional accuracy and long-term reliability.

---

Suitable Industries

This product is widely used within:

• Electrical Engineering
• Power Distribution
• Telecommunications
• Renewable Energy
• Water Utilities
• Gas Utilities
• Railway Infrastructure
• Industrial Automation
• Construction
• HVAC
• Security Equipment
• Cabinet Manufacturing
• OEM Equipment Manufacturing

---

Compatible Accessories

Complete your enclosure with matching Factory Yard products:

• Compression Locks
• Wing Knob Quarter Turn Locks
• Double Bit Quarter Turn Locks
• Square Insert Quarter Turn Locks
• Budget Locks
• Cam Locks
• Swing Handles
• Rod Control Systems
• Butt Hinges
• Continuous Piano Hinges
• EPDM Rubber Seals
• Edge Protection Profiles

---

Materials Disclaimer

Dimensions are nominal and may vary within normal manufacturing tolerances.

The chrome plated zinc die cast construction offers excellent performance for most industrial environments. For marine, food processing or highly corrosive installations, Factory Yard recommends stainless steel alternatives manufactured from AISI 304 or AISI 316.

Product specifications may be updated as part of continuous product improvement.

---

Standards

Manufactured in accordance with recognised industrial manufacturing practices.

Where applicable, products may comply with:

• ISO 9001 Quality Management
• RoHS Compliance
• REACH Compliance

Certification and technical documentation may be available upon request.

---

Frequently Asked Questions

What does GH 40mm mean?

GH refers to the grip height or thread length of the lock body. A 40mm thread allows installation into thicker cabinet doors and insulated panels.

What is an 8mm triangular insert used for?

It is commonly used on utility cabinets, electrical enclosures, telecom cabinets and public infrastructure where controlled access is required.

Can the straight cam be replaced?

Yes. Different cam lengths, offsets and shapes are available to suit various enclosure depths and locking requirements.

Is this lock suitable for outdoor cabinets?

Yes. The chrome plated zinc die construction offers good corrosion resistance for general outdoor use. For coastal or highly corrosive environments, a stainless steel version is recommended.

Can I order this lock with a different thread length?

Yes. Factory Yard supplies quarter turn locks with various GH dimensions, insert types and cam configurations for OEM projects.

Do you offer bulk supply?

Yes. We supply individual replacement locks, trade quantities and high-volume OEM production with custom branding and packaging.

---
