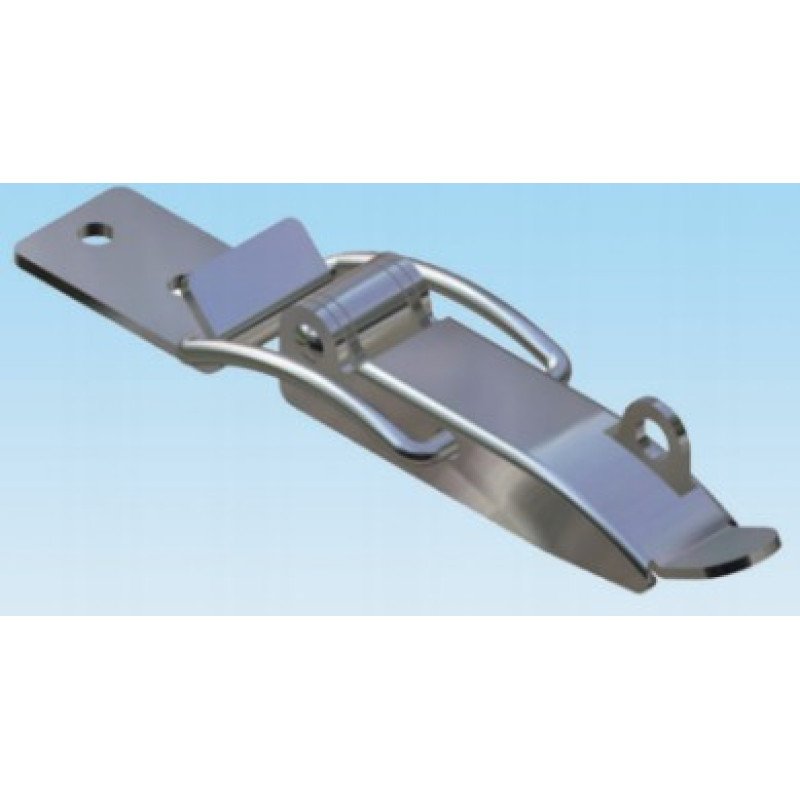

FY064-G1 Stainless Steel Toggle Latch

Overview

The FY064-G1 toggle latch is a robust fastening solution designed to provide secure, reliable, and repeatable closure for industrial enclosures, equipment covers, machine guards, transport cases, cabinets, and access panels.

Featuring an over-centre locking mechanism, this latch delivers strong clamping force while allowing quick opening and closing without tools. Suitable for industrial, commercial, marine, food processing, agricultural, HVAC, transportation, and specialist engineering applications.

Whether used for vibration-prone equipment or frequently accessed enclosures, the toggle latch FY064-G1 offers dependable performance and long service life.

Key Features

• Durable toggle latch construction
• Quick-release over-centre locking mechanism
• Strong and consistent clamping force
• Suitable for repeated opening and closing cycles
• Available in stainless steel and zinc-plated steel versions
• Corrosion-resistant options available
• Easy installation
• Suitable for indoor and outdoor applications
• Compatible with various keeper and catch configurations

Technical Specifications

Please refer to technical drawings for complete dimensions.

How Toggle Latches Work

Toggle latches operate using an over-centre mechanical principle.

When the handle is closed, the linkage mechanism passes beyond its centre point and creates tension between the latch and keeper. This over-centre action maintains a secure clamping force while resisting accidental opening caused by vibration or movement.

Benefits of the over-centre mechanism include:

• Secure locking action
• Fast operation
• Consistent clamping pressure
• Reduced risk of accidental release
• Long service life

This operating principle makes toggle latches one of the most widely used fastening solutions across industrial applications.

Typical Applications

The FY064-G11 toggle latch is commonly used in:

Industrial Equipment

• Machinery covers
• Machine guarding
• Electrical enclosures
• Generator housings
• Compressor panels

Transportation

• Vehicle compartments
• Truck body panels
• Trailer equipment boxes
• Railway equipment

HVAC Systems

• Access doors
• Service panels
• Ventilation equipment
• Air handling units

Marine Applications

• Boat lockers
• Marine cabinets
• Access hatches
• Deck equipment

Food Processing Equipment

• Stainless steel machinery
• Wash-down environments
• Processing equipment covers
• Hygienic enclosures

General Engineering

• Storage boxes
• Tool cases
• Control cabinets
• Inspection panels
• Custom fabricated equipment

Materials Information

This product may be available in different material grades and finishes depending on production batch and customer requirements.

Typical materials include:

• Stainless Steel 201
• Stainless Steel 304
• Stainless Steel 316
• Zinc-Plated Steel
• Mild Steel
• Special materials upon request

Material availability may vary. Customers requiring specific corrosion resistance, mechanical properties, food-grade compliance, or marine-grade materials should contact our sales team before ordering.

Quality and Manufacturing Standards

Our toggle latches are manufactured according to established industrial manufacturing practices and quality control procedures.

Depending on the product version and production requirements, materials may conform to recognised standards such as:

• EN 10088 (Stainless Steels)
• ASTM A240
• ASTM A276
• DIN Material Standards
• ISO 9001 Manufacturing Procedures

Certificates of conformity and material certificates may be available upon request for selected products.

Related Products

You may also be interested in:

• Quarter Turn Locks
• Cam Locks
• Swing Handles
• Hinges
• Industrial Handles
• Rubber Gaskets
• Accessories For Enclosures

Frequently Asked Questions

What is a toggle latch?

A toggle latch is a mechanical fastening device that uses an over-centre linkage mechanism to securely clamp two surfaces together.

What is the difference between a toggle latch and a draw latch?

The terms are often used interchangeably. Both describe fastening devices that pull two components together using a lever mechanism.

Are toggle latches suitable for outdoor use?

Yes. Stainless steel versions are commonly used outdoors and in corrosive environments.

Which stainless steel grade should I choose?

304 stainless steel is suitable for most industrial applications. 316 stainless steel is generally preferred for marine, chemical, and highly corrosive environments.

Can toggle latches withstand vibration?

Yes. The over-centre locking mechanism helps prevent accidental opening caused by vibration and movement.

Are mounting screws included?

Please refer to the product specification. Mounting hardware may be supplied separately unless otherwise stated.

Can I request a custom toggle latch?

Yes. We can source or manufacture customised latches with specific dimensions, materials, finishes, or holding forces.

Need Assistance?

If you are unsure which toggle latch is suitable for your application, contact our technical sales team. We can help identify the correct latch based on dimensions, holding force requirements, environmental conditions, and mounting constraints.
